Hydro-Pneumatic suspension

BPW has running gears with hydro-pneumatic suspension available for vehicles with particular requirements on roll stability, driving safety and comfort. They are characterised by a large equalisation (approximately 270 mm) between the axles with equal axle load distribution. This guarantees a very safe and equally comfortable drive, also with such trailers that may have a critical driving behaviour due to a high vehicle centre of gravity.

Axle type	Axle cross section (mm)	Static suspension unit load (kg)		Wheel connection	Brake
		40km/h	60km/h
GSOH 11008/10	120x15	10000	9000	8/10xM20/M22x1,5 / 160 / 205	Unbraked FL4112
GSOH 12010	150x16	13000	12000	10xM22x1,5 / 160 / 205	Unbraked FL4118 FL4518
GSOH 14010	150x16(20)	14000		10xM22x1,5 / 160 / 205	Unbraked FL4118 FL4518

The data is for informational purposes only. For an exact offer, please contact your local sales representative.

Drive Safe, Guard the Load, Reduce Drag.

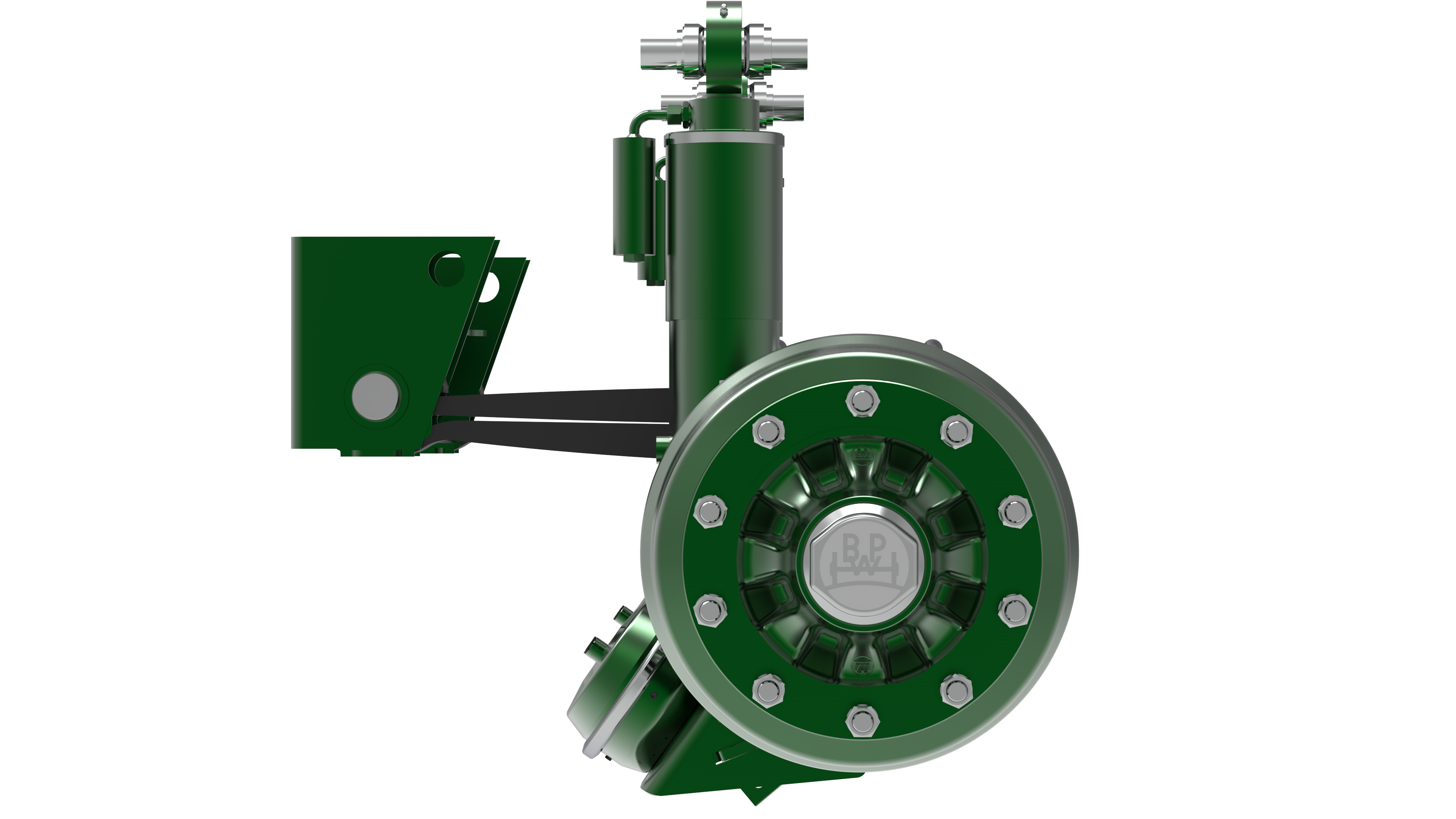

High spring travel and complete, dynamic equalisation

Uncompromising driving safety and protection of the goods for your vehicles. Low drag resistance and good ground protection.

Built to last

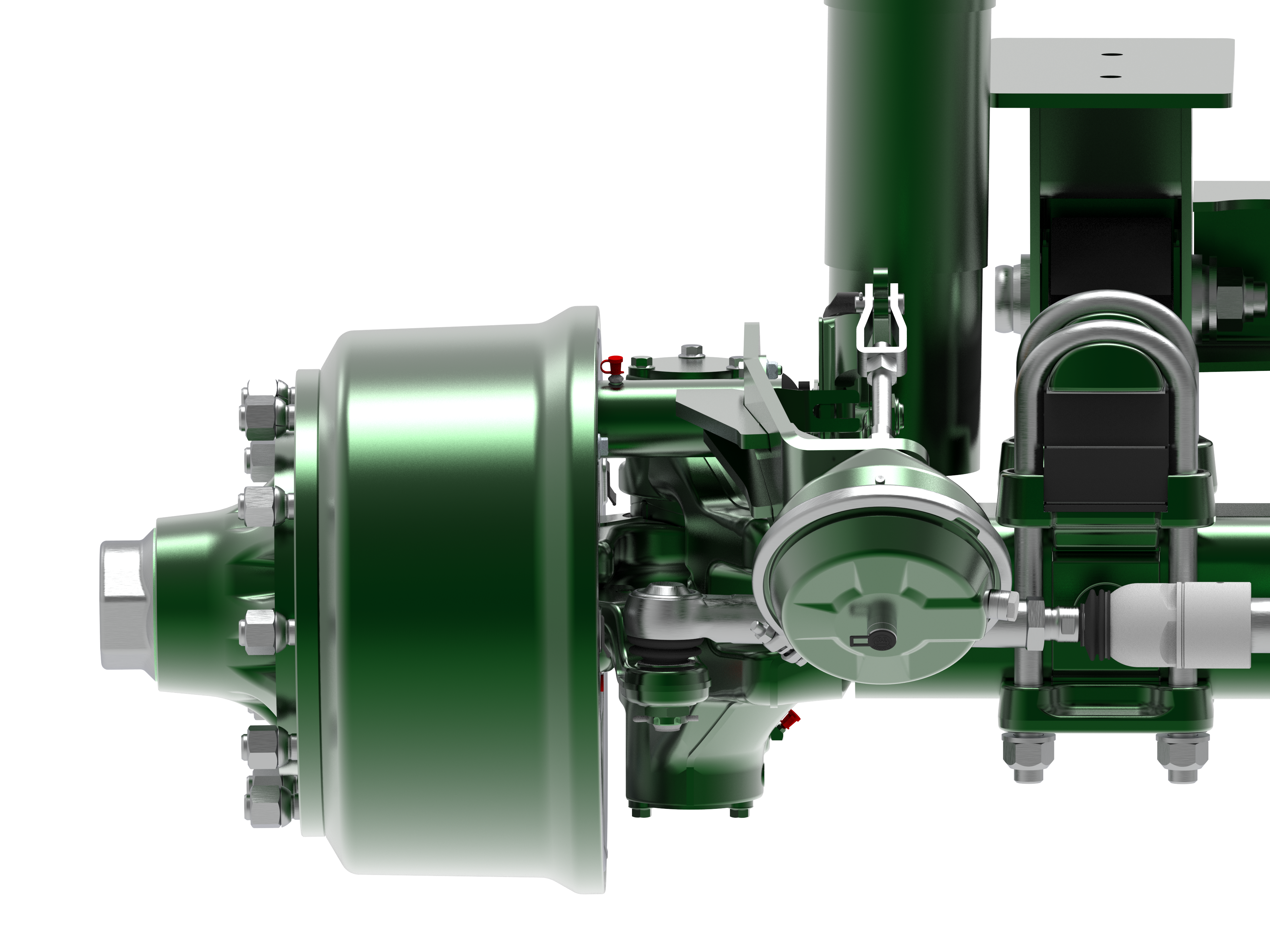

Wide supporting of the cylinder

You achieve a high rolling stability with your vehicle.

Production flexibility

Modular Design

Service friendly and less wear due to the rubbersteel bushings. You reduce your processing times thanks to ease of assembly. You profit from more flexibility in the production using bolted supports. Robust supports for a long service life.
